December 30, 2009

Have you got these errors during Patch creation / deployment?

This post discusses on some common build time as well as runtime errors that we come across while building the Software Updates aka Patches or Hotfixes. Click here for steps to create an uninstallable patch using InstallShield 2010.

Build Error: 6415
After selecting "Minor Update to Target RTM Version" from the Advanced section of the Patch Configuration properties, you may receive the following error:
ERROR: Patch Metadata property: 'MinorUpdateTargetRTM' is not a generic MSI property.
Cause: This error occurs as a result of a bug that exists in the current version of the PatchWiz.dll distributed by Microsoft as a part of Windows Installer.
Resolution: This bug should be resolved as of PatchWiz.dll version 4.0, which will be released with the Windows Vista Platform SDK and Windows Installer 4.0.
Workaround 1: You can temporarily work around this issue by following these steps:

  1. Set the Minor Upgrade to Target RTM Version property to "Yes" from the advanced view of the Patch Configuration.
  2. Open the direct editor (Additional Tools -> Direct Editor) and locate the MsiPatchMetaData table.
  3. Locate the row that contains the Property "MinorUpdateTargetRTM".
  4. In the company column of that row, enter 1.
  5. Re-build your patch.
Workaround 2: Sometimes Workaround 1 does not resolve the problem. In that case remove the text or the number 1 entered for the company column in the row that contains the Property "MinorUpdateTargetRTM" and re-build your patch.

Check the InstallShield KB for more details.

Runtime Error 1328
Description - the following error message is displayed "Error applying patch to file [2]. It has been updated by another means, and can no longer be modified by this patch. For more information contact your patch vendor. System Error: [3]"

Quick Fix - Using Patch Design View:
  1. Verify that all files being updated by the patch exist on the machine. If they do not, then you cannot apply a byte-level patch. To function properly, a byte-level update requires the exact copy of the file it was created for on the target system.
  2. Navigate to the Patch Design View and select the appropriate patch configuration.
  3. Select the Advanced Tab and find the Include Whole File field in the Build Settings section. Set this field to Yes.
  4. Finish building the patch and apply the new patch.
For details refer InstallShield KB

Runtime Error 1646:
Even you create a un-installable patch, patch may not be uninstallable and there will not be any entry in ARP Panel.
In Direct editor make sure that there are no new entries in table ‘Create Folder’. If any new entries are there, delete them. If any extra folder is there, then it makes the patch uninstallable.

December 29, 2009

How do you create an un-installable Patch using InstallShield?

Patches are software updates designed to fix problems in the installed product by providing a modified file(s) / registry entry or new file(s). This post explains how to create an un-installlation patch (either an Update.exe or .msp file) using Installshield 2010.
Steps to Build the Latest MSI for Patch Creation

  1. Copy the Base Installer or previous Hot fix folder (ism file, staging area etc.,) to a separate folder.
  2. Rename the ism file to PRODv1.0SPxxHFyy.ism in the new folder (SPxxHFyy)
    • Rename the previous Hot fix folder also to PRODv1.0SPxxHFyy
    • Delete any folders (PRODv1.0SPxxHFyy -1) related to previous within it
  3. Open the ism file and modify the following• Summary Information Stream -> Title as “PROD 1.0 (v1.00.xxyy)”
    -  Product Properties -> Name as “PROD 1.0 (v1.00.xxyy)”
    -  Product Properties -> Version of the product 1.0.xxyy
  4. Generate new Package Code
  5. Create a Path Variable - <PATCHDESIGN> pointing to PatchDesign directory, which will point to the uncompressed msi and product files for base product as well as latest version.
  6. If the same Patch is executed for the second time, it should be able to detect and prompt that the PATCH is already applied. You can achieve this with the following steps
    "Add a VBScript Custom Action (stored in binary table) to check if the version information for current installer (PATCH) and the Base Installer (already installed) are same, then prompt a message saying that the upgrade is already installed and abort. "
  7. In Direct editor make sure that there are no new entries in table ‘Create Folder’. If any new entries are there, delete them.
  8. Edit the Path variables for staging area and installer resources to point to appropriate folder.
  9. Build the latest MSI and this will be your "Latest Installer" for Patch Design.
Creating a new Patch
  1. Go to Media -> Patch Design. Right click and select ‘Add New Patch Configuration’. Rename the new ‘PatchConfiguration1’ in the format PRODVVSPxxHFyy (say PROD10SP02HF01).
  • Common -> De-select “Create Update.exe”, if you wanted to create an update as .msp file.
  • Common -> Select “Allow Patch to be uninstalled”
  • Add the uncompressed Latest msi built earlier, for the latest setup path
  • Advanced -
    i. Generate Patch GUID – No
    ii. Note down the Patch GUID for command line uninstallation
    iii. Include Whole files – Yes
    iv. If this is the first HF for this product line and there is no major upgrade previously set Allow Product codes to differ – No otherwise set to Yes
    v. Include Win9x engine – No
    vi. Include WinNT engine - No
    vii. Minor Update to Target RTM version (MSI 3.1 Required) – Yes. By setting this option to Yes, you can include only the Base MSI under the previous patch section and safely ignore the other msi’s between the Base and the current Patch.
    viii. Msi Engine Version\Schema - Version 3.1 (requires Windows 2000 SP3 or greater)
   2.  Under Previous setups add uncompressed Base MSI
        [Note: Even for successive patches, it is sufficient to include only Base MSI under Previous setups since we have selected Minor Update to Target RTM version (MSI 3.1 Required) to Yes.]

Command Line Switches for MSI and MSP Installations / Uninstallations:
Click here for command line arguments and the silent switches that can be used for msi and msp (un-installable patches).
I will write shortly on few build-time / run-time errors thrown in patch creation process and the steps to resolve the same.

December 18, 2009

Creating an Installer for new Product? Consider these cool tips, if the updates will be Patches.

  • Make sure the component best practices are followed especially to create one component per binary (say exe, DLL, chm, xml etc.,)
  • An Exe Custom Action, which has to be executed only during Base uninstallation, please add the condition as REMOVE=”ALL” instead of Installed, because sometimes during Patch uninstallation, EXE custom action is executed ruining the installation on the system. This is a limitation with Windows Installer versions prior to 4.5. However if you are using Windows Installer 4.5, the n feature “Custom action execution on update uninstall” lets you to an update add or change a custom action so that the custom action is called when an update / patch is uninstalled.
  • Updating XML files and preserve the changes during Patch installation / uninstallation

December 15, 2009

When do you prefer Shared DLLs over Merge Modules?

Merge modules are similar in structure to a simplified Windows Installer, which helps to integrate shared code, files (DLLs / OCXs), resources, registry entries, and setup logic to applications as a single compound file.

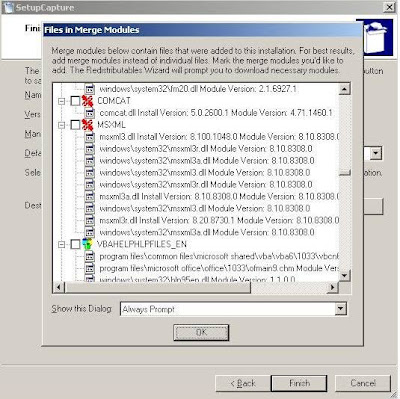

Drawback of using downloadable Merge Modules while re-packaging: Most of the merge modules are present in their respective shared location, if not; it’s downloaded from the web. As the files integrated with the installer is from merge modules, it does not require isolation.
When you don’t find the proper network for the Share location on web during installation, then the application / installation fails to function. This is the main drawback of the Merge Modules. Shared DLL concept can be used to overcome this issue.
During the re-packaging process usually we don’t include the merge modules, that has to be downloaded during installation, in the WSI/MSI; this is to avoid the above mentioned network issues. The following screen shot shows how the merge modules will be excluded in the package:

In this case the DLL/ OCX files will be included directly within the WSI/ MSI.

Shared DLLs:
All the DLLs captured in the WSI/ MSI will be a shared DLL. When a DLL is already present in the machine and if we install the application, the DLL of the same version increments its DLL counter. Since the DLLs from the MSI are shared DLLs, any new application that would be installed on the same machine in future will increment the corresponding DLL count. All the Shared DLL counts can be viewed from the following registry location:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\SharedDlls When there is a DLL conflict found using Wise Conflict Manager, we go for Isolation. This is named as DLL Redirection.

What is DLL Redirection?
Since an executable imports API functions from DLL files, DLL redirection allows us to tell a program that the DLLs it needs are located in a different directory than the originals; in this way we can create a DLL with the same name as the original, which exports the same function names as the original, but each function can contain the code of developer’s choice.

There are two ways to achieve DLL redirection;

  1. “dot local” redirection:
    “Applications can depend on a specific version of a shared DLL and start to fail if another application is installed with a newer or older version of the same DLL. There are two ways to ensure that your application uses the correct DLL: DLL redirection and side-by-side components. Developers and administrators should use DLL redirection for existing applications, because it does not require any changes to the application. “
    In other words, dot local DLL redirection affords developers the ability to force an application to use a different version of a particular DLL file than that used by the rest of the system. For example, if an application called oldapp.exe only worked with an outdated version of user32.dll, then instead of replacing the user32.dll file in the system32 directory (potentially causing many other applications to break), you could tell it to load the older version of user32.dll from the program's current directory by creating an appropriate dot local file. All other applications will still load the newer DLL from system32 and remain unaffected. All that is needed is to create a dot local file (which is simply an empty file whose name contains the name of the target application followed by a .local extension; in this case it would be oldapp.exe.local), and place it and the older version of user32.dll in the same directory as oldapp.exe.
    Limitations with “dot local” redirection:
    Most notably, according to MSDN, certain DLL files (called 'Known DLLs') cannot be redirected in Windows XP (this restriction does not apply to Windows 2000). A list of all Known DLLs can be found in the
    HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\KnownDLLs key; included in the list of known DLLs are kernel32.dll, user32.dll and gdi32.dll. However, this is not true - it seems that under Windows XP, an application will either allow you to redirect any DLL, or none at all. As such, if targeting a program running on the Windows XP platform, dot local redirection is an unreliable method, and should be used only on Windows 2000 machines.
  2. Using Manifest Files:
    Manifest files use the same naming convention as dot local files (i.e., oldapp.exe.manifest), but are not empty files. They must contain certain XML-formatted information in order to function properly, or else the target application will fail to load. In addition, manifest files are only supported on Windows XP and Vista; however, they are far more reliable than using dot local redirection, and allow us to redirect any DLL file. (NOTE: The testing was done under Windows XP only; it is possible that some restrictions/changes may be applied to Windows Vista).

Window 2003 Server – “Service Unavailable” on IIS webpage

All of a sudden the web applications installed on Windows 2003 Server with IIS 6.0 stopped working.
  • Observed that IIS is running and all the windows services related to installed web application is up and running.
  • Restarting IIS and web application related services was of no help.
  • Enabling Isolation Mode (Web Sites Properties -> Services -> Isolation Mode -> Run WWW service in IIS 5.0 isolation mode).
Later on identified that Windows security updates installed on Dec 9th 2009 have caused the problem.

Initially uninstalling the following Windows security updates and restarting the machine have fixed the issue.
Exploring further could help us narrow down that by just removing Windows Update KB973917, the 'Service Unavailable' issue will be resolved. However while removing it says KB974392 may not work properly. On resrting the machine IIS & WebApplications are working properly.

December 11, 2009

New to Blogspot!.. Some Cool Tips to create a blog

Tips to setup your first blog on

  1. Sign into with your Google Account, if not create a Google account for yourself and proceed.
  2. Create a blog id (like You can create any number of blogs with Google account and can make them public (which can be searched by search engines) or private.
  3. Choose appropriate blog template and all set for blogging. Any time you can change the blog template to change the look and feel of your website. Further there are plenty of blog templates available for free on the web.
    [Note: Please make sure to take a backup of the existing template before changing to a new one.]
  4. How does your blog reader contact you? Sharing the email directly might lead to lots of spam’s too and not a general practice either. Go for Contact Forms. - there are plenty of them readily available and added to your blog in no time.
    I have used and its very simple. Here you go to integrate it with your blog.
    • Register with Kontactr
    • Copy the Script say something like this, but ID might be different for your registration
      <script type="text/javascript"> id = ID; </script>
      <script type="text/javascript" src=""></script>

    • Modify Post options by using some old date for the Contact Form post, disable / hide comments & Back links.
    • Publish it. Your Contact Form is ready.
  5. FeedBurner - FeedBurner makes it easy to receive content updates in My Yahoo!, Newsgator, Bloglines, and other news readers.
    Register your blog with FeedBurner and add your feed address (say in your blog. Once this is set, Subscribe To in your blog can take the reader to the feed burner URL.
  6. Google Analytics -Register with Google Analytics using your Google account and add the code provided to your template just before the tag. Google analytics will help you to monitor the traffic over your website or blog even to individual page level, time spent on each site etc.,
    The code would look similar to this, where you would need to replace XXXX-X with you Analytics ID / No.
    <script type="text/javascript">
    var gaJsHost = (("https:" == document.location.protocol) ? "https://ssl." : http://www/);
    document.write(unescape("%3Cscript src='" + gaJsHost + "' type='text/javascript'%3E%3C/script%3E"));
    <script type="text/javascript">
          var pageTracker = _gat._getTracker("UA-XXXX-X");
    } catch(err) {}

  7. Google Adsense - Google AdSense is the program that can give you advertising revenue from each page on your website—with a minimal investment in time and no additional resources. If you feel you have enough web pages with good number of readers, Of course you register and start with Google Adsense.
  8. Wondering about losing your articles / data that you have published? No Worries! Google does regular backup.
    It’s better to save your template xml, which you might overwrite sometime and would end up losing all the configurations, that you have done in all the previous steps.
Thank you Vijay for your inputs. Hence forth, you can refer this article instead of explaining for the newbie's.

December 9, 2009

Directory structure design for Installers, which facilitates future updates

This post provides a folder structure design, which can be used while creating the installer for the first release or base version of a particular product. This helps to maintain the installer project files, support files for the installer, merge modules (if any), product staging area etc., The format should work with any Installer authoring tool like InstallShield, Wise, WiX or InstallAware. The following image depicts the directory structure design.

Note:    The above folder structure is designed to isolate dependency on the Packagage authoring tool's installation directory but however for InstallShield, the Setup-Prerequisites should still be under <InstallShield InstallDir>\SetupPrerequisites.

    Installer project file (say .ism for InstallShield) and associated folder
        PRODv10.ism & PRODv10
        PRODv10SP1.ism & PRODv10SP1
        PRODv10SP1HF1.ism & PRODv10SP1HF1
    Installer design and related documents.
This folder will be used only when you are working on upgrade as a Patch and not for Service Packs. This has the uncompressed msi file related to the minor upgrade and product files / folders.
             BasePRODv1.0 –base version
             Latest(PRODv1.0HFyy) – for any subsequent Hotfixes.
This folder will have the files resources / files to be bundled with the installer. The same folder can be used for the StagingArea all successive updates (as patches) or service packs
  • <PRODv1.0> - base version
    • SupportDir – files used at the time of installation say dialog images, splash screen, billboards, Custom actions etc.,
    • msm – In-house as well as 3rd party merge modules used by the installer
    • <PRODv1.0DeploymentStructure> - product binaries in the deployment structure. It is always recommended to have the product staging area similar to the deployment structure, which will help during maintenance.
  • <PRODv1.0SPxxHFyy >
    Similar to base version structure and this contains the updated files / folders for the respective Service pack or Hotfix. So the actual folder name can be PRODv1.0SP02 or PRODv1.0SP02HF03 based on the release what you are working on.
    • SupportDir
    • msm
    • <PRODv1.0SPxxHFyyDeploymentStructure>

December 8, 2009

Some Packaging & Deployment Definitions / Acronyms

Setup - Setup is an application or process that allows you to package up your application into an easy-to-deploy format, which can then be used to install the application on the target server.

Deployment - Deployment is the process of taking the application and installing it in on another machine, usually by the use of a setup application.

Installation - Installation of a program is an act of putting an application into the computer system where it can be executed. Click here for more installer related jargons.

Bootstrapper (from Wikipedia) - Bootstrapper is usually a small executable file (e.g. setup.exe) which updates the installer and starts the real installation after the update. Sometimes the bootstrapper installs other prerequisites for the software during the bootstrapping process too.

MSI - Windows Installer (formerly Microsoft Installer)
MSM - Merge Module
CM - Configuration Management
SCM - Software Configurtion Management (Source Control Management)
CR - Change Request
CNR - CanNot  Reproduce
SP - Service Pack
HF - Hotfix
RC - Release Candidate
RTM - Release to Manufacture

December 4, 2009

InstallShield Tips

This article has some tips for InstallShield users
Splash Screen Display
For a basic msi project, the splash screen will be displayed only when you create a Setup.exe and not the compressed (or single) msi.

Setup pre-requisites
For a basic msi project, the Setup pre-requisites can be bundled only when you create a Setup.exe and not the compressed (or single) msi.

Abort & Rollback
For Rollback to happen, the abort must happen between the InstallInitialize and InstallFinalize actions, and must be a deferred action.

Hide ARP Entry
Set ARPSYSTEMCOMPONENT=1 in Property Manager.
[Note: Verified this with Basic MSI Project created using InstallShield 2009 (SP2).]

InstallShield project file format
InstallShield supports binary as well as xml format for storing InstallShield project files. The default is binary however the xml format is best for the speed of opening and saving the project file. It also allows you to manipulate the project file using the Windows Installer API. The XML format is best for use with source control systems. It allows you to manipulate the project file using XML Utilities.

Windows 2008 Support
Windows 2008 Server is support only from InstallShield 2009 onwards.
Note: InstallShield 2009 help says that Windows Vista and Windows Server 2008 have the same major and minor version numbers. Therefore, the installation considers Windows Server 2008 to be the same as Windows Vista; thus, components that are marked for Windows Vista are also installed on Windows Server 2008.

December 2, 2009

BangaloreITPros UG Meet - SharePoint 2010 & Windows 7 ACT 5.5 Overview

I had been for BangaloreITPros’ (BITPro) monthly User Group meet over the weekend (Nov 28th 2009). Glad that the 3 hours I spent over there was useful.

There were two sessions - SharePoint 2010 Beta Technical Overview & Windows 7 Application Compatibility Toolkit 5.5 Overview

SharePoint 2010 - by RaviKanth from M/s Dell India Pvt. Ltd.,, spoke about new features and System requirement too

  • Granular backups using central admin sit, helps to recover small units of data.
  • Windows Powershell support
  • Ability to restore from unattached databases.
  • Improved upgrade process
  • To be released in first half of 2010
SharePoint 2010 supports only x64 OS with 64bit SQL Server (2005 or 2008), so the x64 system requirement could be a bad news for those who use SharePoint 2007 and planning to upgrade to 2010.

The Slide Deck for the SharePoint 2010 Technical Overview can be found here and Joel’s blog on SharePoint has lot more for us.

Windows 7 ACT 5.5 Overview – by Vijay Raj from Texas Instrument
Vijay gave an overview of Windows 7 Core OS changes and a detailed explanation of how the Application Compatibility Toolkit (ACT) 5.5 can be used to mitigate the AppCombat issues, like how the compatibility issues can be detected and fixed using ACT either during development or deployment phase, in a corporate environment for supporting new versions of Microsoft Windows Operating System.

The Slide Deck for the same is available here.

Bangalore .Net (BDOTNET) user group has some events in pipeline for the developers.
